Triangular Scale Rules

Professional quality Triangular Scale Rules for Architects, Engineers, and anyone who needs to read a drawing.

Our triangular scale rules are premium quality professional rules with space for your logo, company name, brand and product information.

Specifications and features

Specification and Features of a Triangular Scale Ruler:

  • 10 scales calibrated to professional quality 1:1 1:10, 1:2 1:20, * 1:5 1:50, 1:100 1:200, 1:1250 1:2500
  • Length of scales = 300mm
  • Print area 7mm x 300mm
  • Printed with your company name and logo
  • Printed with up to four Pantone PMS colours
  • Each ruler supplied in a rigid clear plastic case
  • Quantity breaks for prices are 100, 250, 500, 1000, 2500

Design & Artwork

Our design team can support your graphic and artwork needs. For customers using their own artwork, we recommend the following guidelines:

  • Logos, or complete artwork, should be supplied as high resolution pdf files, or separate vectored (outlined) elements saved as an Adobe Illustrator .ai or .eps file with type converted to outlines.
  • Colour references should be in Pantone PMS or CMYK
  • Text should be 6-point in size or larger
  • Lines should not be less than 0.5pt


PDF templates available for download:

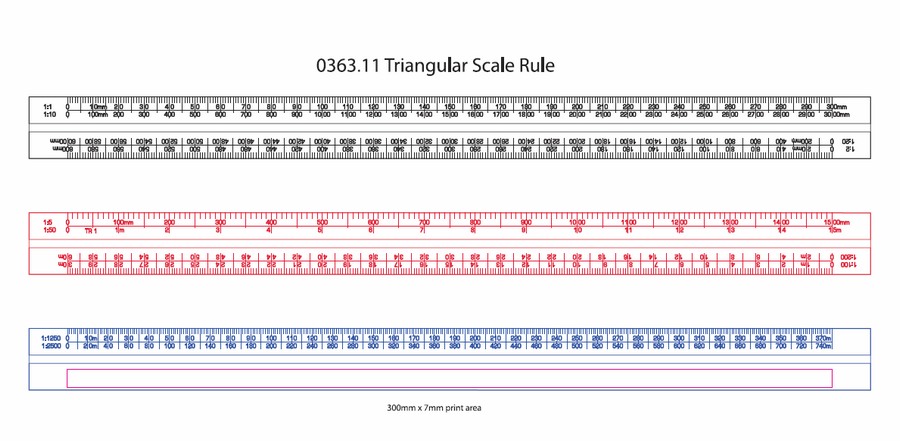

Download Triangular Scale Rule 300mm PDF Template

Triangular Scale Rule 300mm

Print Area 300mm x 7mm

For more information and prices
